The Hidden Cost of Generic Content in BIM Projects
In modern architecture, engineering, and construction (AEC) projects across the Middle East, Building Information Modeling (BIM) has fundamentally transformed how multidisciplinary teams design and execute complex facilities. However, a persistent technical pitfall often undermines the integrity of otherwise well-planned models: the reliance on generic or placeholder Revit families. When architectural, structural, and electro-mechanical teams populate a digital model with approximated geometry instead of manufacturer-specific parameters, the resulting discrepancies inevitably manifest as costly clashes and rework on site.
As project owners and engineering directors demand higher precision through advanced BIM services, understanding the operational difference between generic components and true-to-size objects becomes essential. Choosing proper object standards ensures that digital coordination accurately reflects physical reality, protecting budgets and schedules from unexpected site delays.
Understanding Object Standards and Level of Development (LOD)

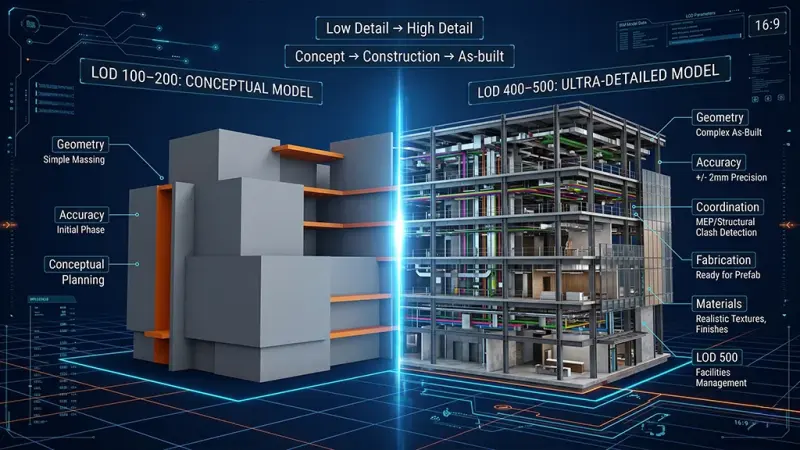

To establish a reliable digital twin, modeling teams must adhere to established industry frameworks such as the NBIMS-US object standard and the LOD Specification published by BIMForum. These guidelines dictate that as a model progresses from schematic design to construction-ready deliverables, the geometric and parametric data must mature proportionally.
At earlier stages, generic placeholder items are acceptable for massing studies or space allocation. However, transitioning into detailed coordination, fabrication, and installation requires shifting to true-to-size manufacturer content. When engineers utilize precise parameters for items ranging from air handling units to heavy substation switchgear, they ensure that spatial clearances, structural loads, and connection interfaces are verified long before construction begins.
Key Differences Between Generic and Manufacturer-Specific Families
| Feature | Generic Revit Families | Manufacturer-Specific Families |
|---|---|---|
| Geometric Accuracy | Approximated bounding boxes and shapes | Exact physical dimensions and clearances |
| Data Richness | Minimal parameters, often unclassified | Comprehensive technical specs, flow rates, and weights |
| Clash Detection Reliability | High false-positive or false-negative rate | Precise spatial conflict identification |
| Shop Drawing Extraction | Requires extensive manual detailing | Directly feeds fabrication and engineering design of buildings |
The Direct Impact on Clash Detection and MEP Coordination
Comprehensive 3D coordination relies entirely on the geometric validity of every element within the federated model. In dense mechanical rooms, hospital facilities, or complex utility corridors, an error of just a few centimeters in equipment sizing can invalidate an entire routing path for ductwork, piping, or cable trays.
When modeling teams rely on generic placeholders, clash detection software often reports a clean coordination pass. Yet, once procurement delivers the actual manufactured equipment to the site, contractors discover that service access panels are blocked, electrical terminations misalign, or pipe connections fail to match structural openings. Building accurate coordination models—whether for commercial hubs like the Royal Commission for AlUla Headquarter Office & Business Park Project or specialized industrial plants—requires building or sourcing families that mirror exact physical footprints.
Maintenance Access, Clearance Zones, and Spatial Planning
Equipment sizing affects far more than initial installation routing; it dictates the long-term operational viability of the facility. Transformers, chillers, pumps, and switchboards require mandatory clearance zones for routine maintenance, filter replacements, and emergency repairs.
True-to-size manufacturer content integrates 3D clearance zones directly into the family definition. If a maintenance hatch requires a one-meter pull space, an accurate family visualizes this constraint within the modeling environment. Omitting these parameters through generic content often results in cramped mechanical rooms where technicians cannot safely service vital assets, leading to costly facility modifications post-occupancy.
Best Practices for Developing and Managing Revit Content
Maintaining a robust library of high-performance families requires disciplined internal standards and rigorous quality assurance protocols. Engineering consultancies should implement structured workflows to verify incoming content before deploying it across major multi-zone models.
- Audit Supplier Data: Cross-reference all downloaded or custom-built families against official manufacturer cut sheets, submittals, and technical catalogs.
- Optimize File Size: Avoid over-modeling microscopic internal nuts and bolts that inflate file sizes while providing negligible coordination value.
- Standardize Shared Parameters: Ensure consistent naming conventions, electrical classifications, and material properties across all disciplines.
- Lock Down Version Control: Restrict direct editing of master library families to designated BIM managers to prevent unauthorized alterations.
Key Takeaways
- Generic Revit families introduce severe geometric and data risks that surface as expensive clashes during construction.
- Manufacturer-specific content ensures that spatial planning, maintenance clearances, and service access comply with operational realities.
- Adhering to recognized LOD specifications and object standards bridges the gap between digital design and physical fabrication.
- Investing time in accurate family creation significantly reduces requests for information (RFIs) and site delays.
